Used machines for Wire and Cable Industry
Non-Ferrous Wires and Cable Equipment
Rodbreakdown lines non-ferrous
09-01-50 NIEHOFF rod breakdown line MM85; year 1982; inlet Ø 8,0 mm; max. outlet Ø for 1 wire-operation: 4,5 mm (soft), max. outlet Ø for 2 wire-operation: 2,5 mm (soft); min. outlet Ø (1 or 2 wires): 1,05 mm; 13 dies; capstan Ø 450 mm; max. speed 31,5 m/sec.; line components: wire rod pay-off, drawing machine, annealer, dancer VM 300, spooler SL 1250.1, 2 coilers WF 650

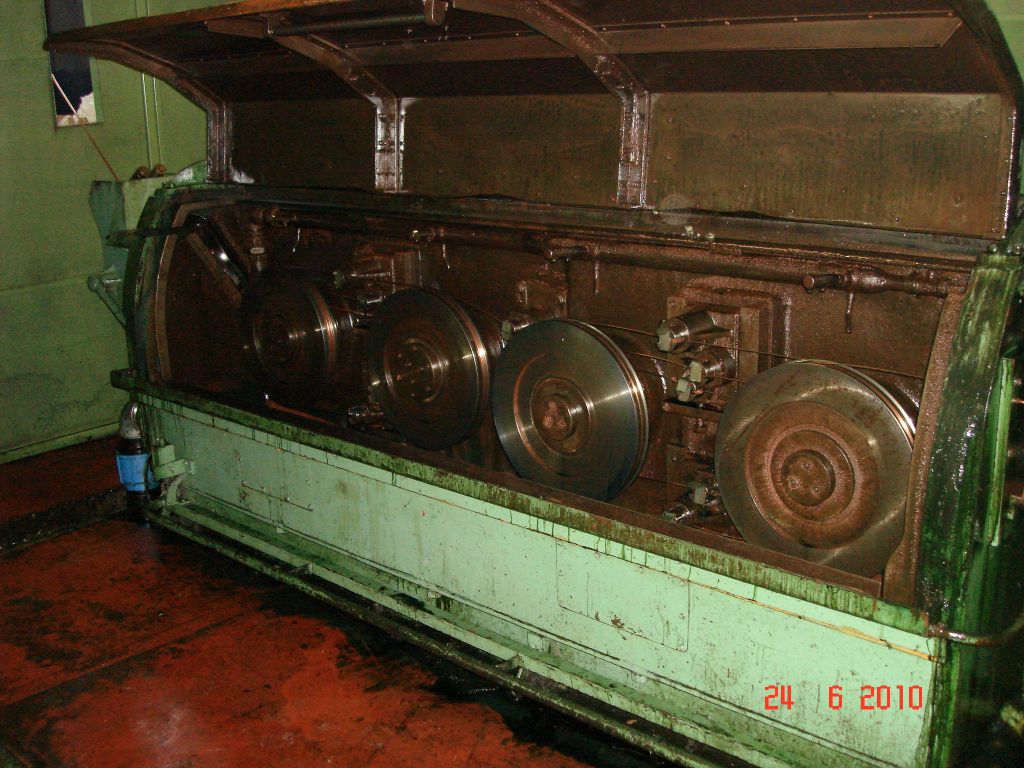

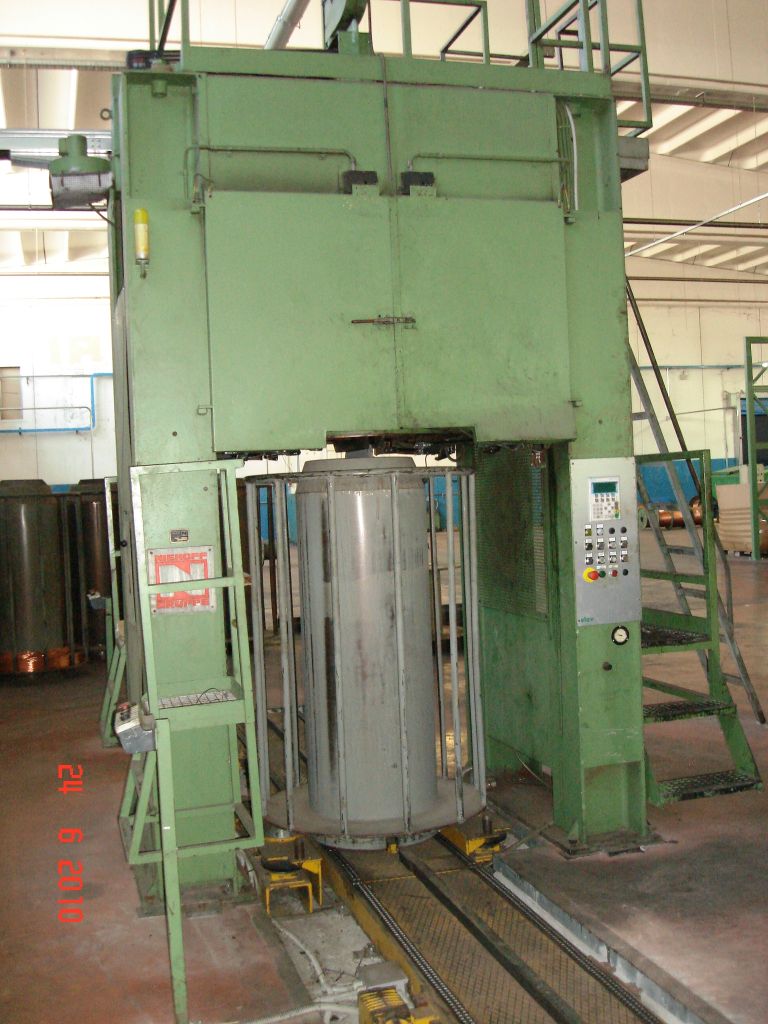

10-01-61 SYNCHRO rod breakdown line; no. of dies: 13; incl. new motor and drive; incl. NIEHOFF dancer and down coiler


11-01-65 NIEHOFF multi-wire drawing line MMH 101; suitable for bare Cu-wire; 16 wires; 25 drafts; inlet dia. max. 1,40 mm / 1,70 mm; finished dia. max. 0,32 mm / min. 0,10 mm; drawing capstan dia. 80 mm; incl. spooler S 631.F.E with dancer; incl. annealer RM131.R.16.1500; still installed and operational!


Fine and intermediate wire drawing machines
04-01-19 HERBORN H 30 drwg. machine with VG 30 annealer and S 500 single spooler max. Ø 560 mm; inlet range from 3,5 mm to 1,55 mm; finish from 0,30 mm to 1,00 mm

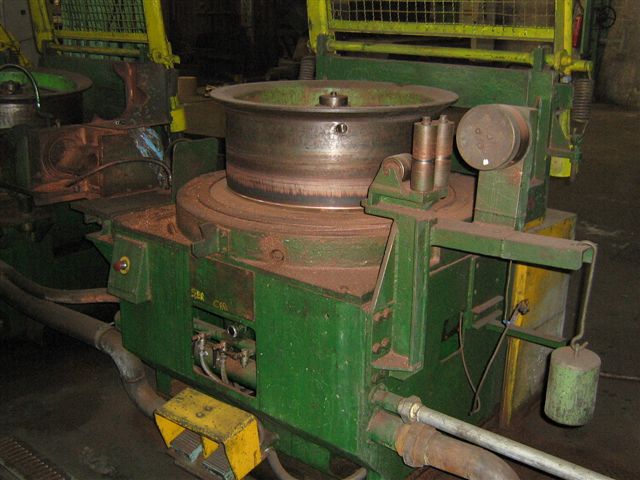

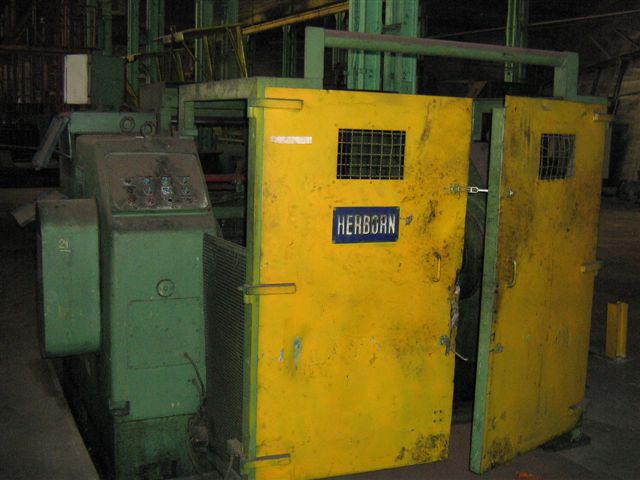

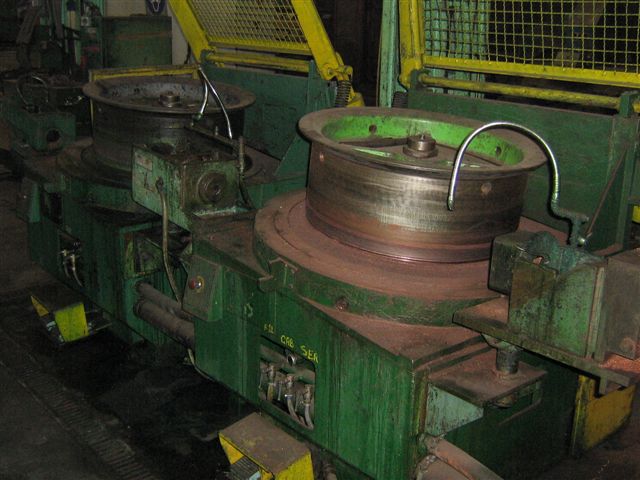

07-01-35 HERBORN drawing line type 30/3, year 1975; suitable for round Cu wires; 3 drawing blocks; inlet Ø max. 11,5 mm; V max. 1,8 m/sec., consisting of: HERBORN drum pay-off, flange Ø max. 1600 mm / min. 1350 mm; 3 HERBORN drawing blocks, capstan Ø 700 mm; HERBORN horizontal spooler type SLB 1600, flange Ø 1600 – 1400 – 1600 – 1350 mm

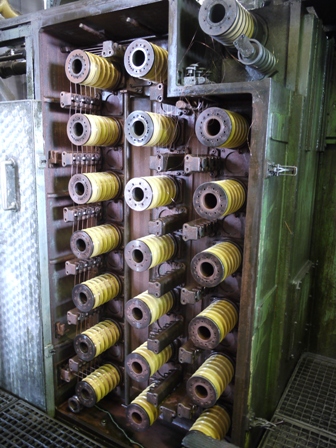

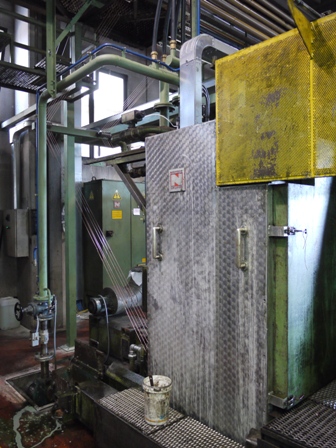

09-01-51 NIEHOFF 12-wire drawing lines (2 pcs.); year 1991; no. of wires: 7 – 12; inlet Ø 1,8 mm (soft); outlet Ø: max. 0,4 mm – min. 0,193 mm (soft); 21 dies; max. speed 30 m/sec.; line components: drwg machine MZV 120.20, annealer VG 30 M, spooler SL 800


11-01-64 SAMP fine wire drawing machine MS 200; year 1976; suitable for bare Cu-wire; max. inlet Ø 2,00 mm (hard or soft); max. outlet range 0,20-0,50 mm; 17 dies; cross sectional reduction 19,5 %; wire elongation max. 24%; incl. SAMP continuous resistance annealer RC 15; incl. SAMP single spooler for spools max. DIN 400; incl. 30 spools 400 mm


11-01-69 SICTRA multi-wire drawing machine; year 1996; 16 wires; 31 dies; inlet wire Ø 1,80 – 2,0 mm; finished wire Ø min. 0,15 min. - max. 0,40 mm; elongation 26%-21%-15%; line components: drawing machine, annealer, 2 dancers, 2 spoolers; accessories: noise protection, emulsion cleaning and filtering system; in good condition, still installed!


Bunching and stranding machines

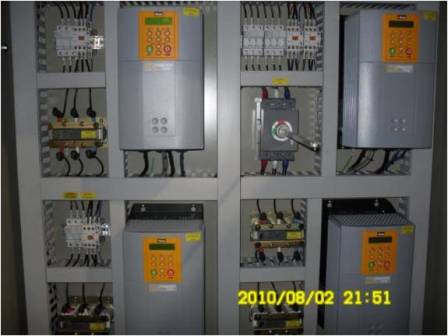

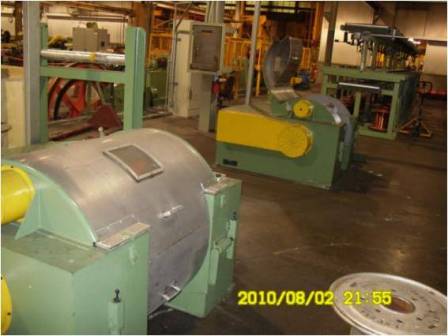

10-03-64 GODDERIDGE double twist bunching machines TD 600 (4 pcs.); suitable for Cu-wires and insulated conductors; max. size 2,6 mm (6,0 mm²); max. 3000 twists/min.; take-up spool max. 600 mm (DIN); spool weight max. 600 kgs; inkl. lifting table, pneumatic pintle, soundproof cabinet, electrical cabinet with new electrics for 4 machines


10-03-65 KRUPP double twist bunchers (5 pcs. available); suitable for production of telephone pairs and quads; conductor Ø min. 0.6 mm – max. 1.6 mm; 2400 twists per minute; lay length min. 50 mm – max. 180 mm; take-up spool flange Ø 500 mm; core Ø 200 mm; in good condition!
10-03-66 CORTINOVIS rigid strander; type 1+12+18+24/700; suitable for stranding of ACSR and AAC conductors; year 1988; single wires max. 3,90 mm; max. strand/cable dia. 35,1 mm ; take-up 2000 mm; incl. 100 bobbins, flange Ø 700 mm; still installed and operating!
10-03-67 rigid strander; type 1+12+18+24/600; suitable for stranding of ACSR and AAC conductors; year of manufacture 1994; single wires max. 3,90 mm; max. strand/cable dia. 35,1 mm; take-up 2000 mm; incl. 150 bobbins, flange Ø 600 mm; still installed and operational!

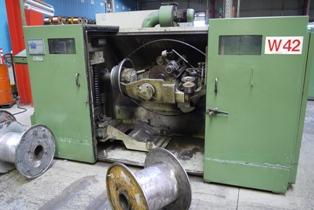

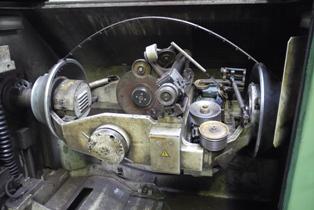

11-03-70 BEKAERT double twist bunching machine DTK 630 EG; year 1998; bobbin size: 630 mm; rotor: max. 3600 min-1; 6000 twists/min.; wire: 0,127 – 0,9 mm; strand: 0,5 – 6,0 mm; operating hours: 80.500 h


11-03-82 DIGEP tubular strander 1+6/400; year ~1970; spool capacity approx. 160 kgs (steel wire dia.: 3,0 mm / 3.000 m); production capacity approx. 1.000 m/h (strand 7 x 3,0 mm); wire diameter 1,0 – 4,0 mm; strand diameter max. 15 mm; capstan dia. 1600 mm; 30 empty spools; in good condition, stopped from production end of 2010
11-03-83 DIGEP tubular strander 1+12/400; year ~1970; spool capacity approx. 160 kgs (steel wire dia.: 3,0 mm / 3.000 m); production capacity approx. 1.000 m/h (strand 7 x 3,0 mm); wire diameter 1,0 – 4,0 mm; strand diameter max. 15 mm; capstan dia. 1600 mm; 30 empty spools; in good condition, stopped from production end of 2010
Presses
No machines available for the time being.
Complete lines
Rolling mills

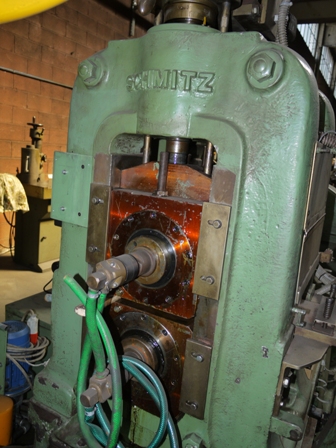

10-05-08 SCHMITZ rolling mill; thickness input / output:min. 1 mm – max. 7 mm / min. 0,5 mm – max. 4 mm; width input / output: min. 4 mm – max. 35 mm / min. 4 mm – max. 30 mm; max. section 120 mm²; take-up 1300 mm; capacity take-up 1800 kgs; max. speed 137 m/min.; overhauled in 2005 (incl. new electrical control and take-up); in good condition!


Extrusion lines
04-06-05 NOKIA complete line for telephone conductors: dia. copper 0,32 – 1,2 mm cable dia. over insulation: 2,5 mm; line speed: 1.800 m / min.; line components: NOKIA extruder MP 80; cooling trough; haul-off capstan; sparktester; NOKIA double spooler EKP 5010. Complete line is still installed!

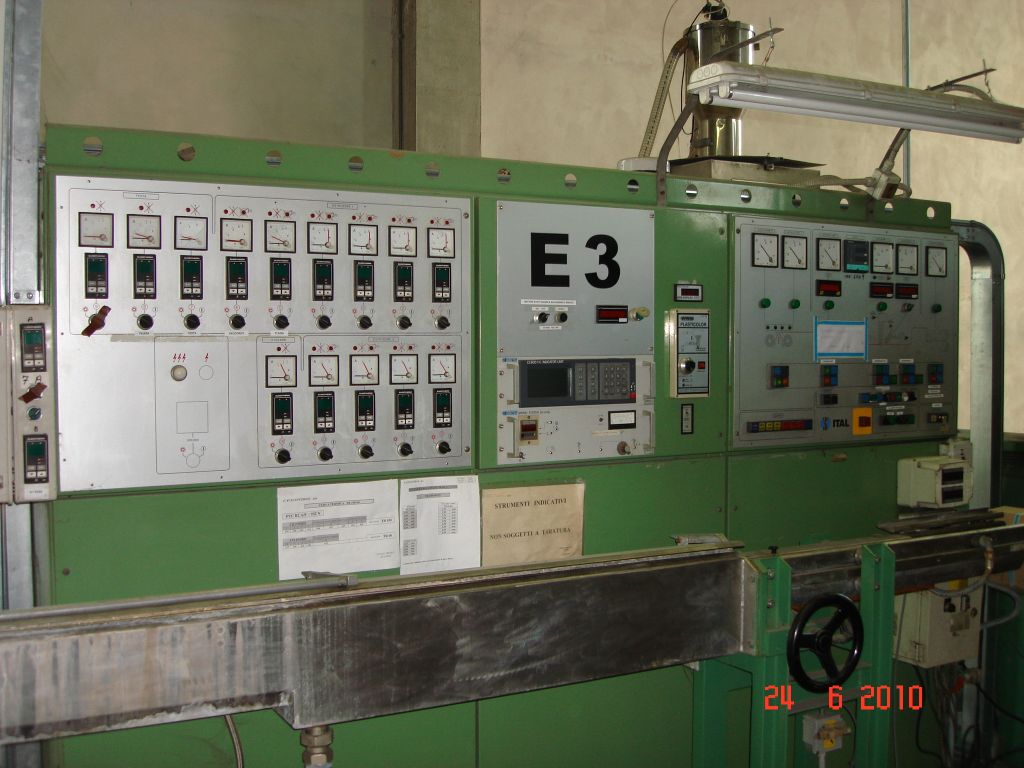

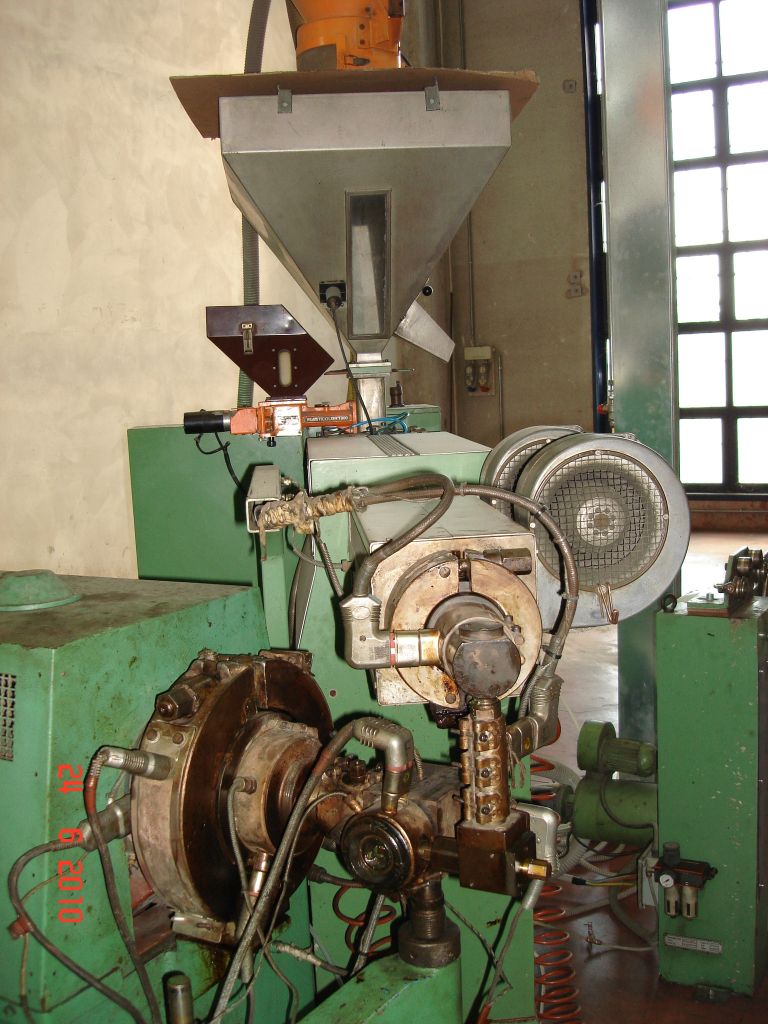

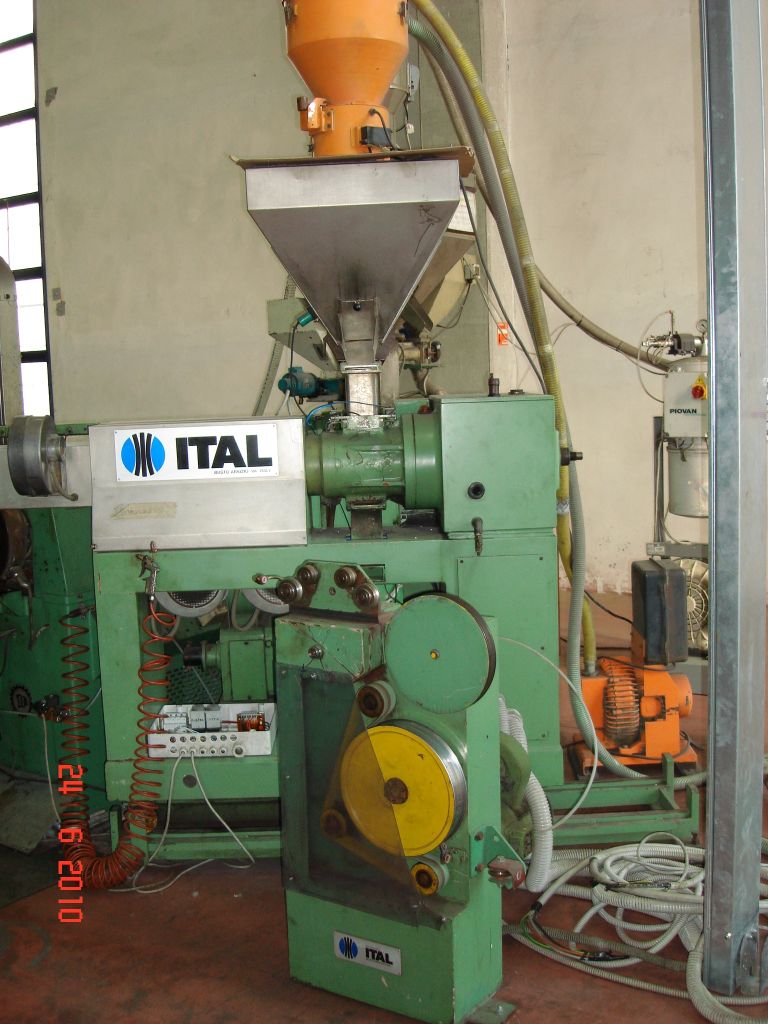

10-06-21 ITAL extrusion line for cable insulation; year 1992; consisting of: pay-off, ITAL extruder 100 mm with co-extruder, cooling trough (stainless steel), haul-off capstan, automatic double spooler, reel flange dia. 1250 mm; still in production!


Complete production line for telephone cable
04-07-02   VARIOUS
                    complete used cable production line; consisting of:
                    1 NOKIA  extrusion line for telephone cable;
                    5 KRUPP double twist bunching machines;
                    1 HERBORN / NIEHOFF intermediate drawing machine;
                    1 HENRICH fine wire drawing machine with annealer and spooler;
                    and various others

09-07-24 OUTOKUMPU upcast continuous casting line L-12 20K (12000 TPA); suitable for Cu; previous wire dia. max. 20 mm (subject to change after modification); no. of wires: 12; incl. various accessories
11-07-26 UPCAST OY continuous casting machine; year 1998, major upgrade 2008; no. of wires: 8; previous rod dia. 8,0 mm (others possible subject to modification); annual capacity 6.000 to; components: charging machine, melting furnace and inductor body + coil, laundering system, holding furnace and inductor body + coil; casting machine, 8 take-up coilers, electrical panel and control system; various accessories and spares


Spoolers and coilers
10-10-11 universal pay-off with brakes (2 pcs. available); year 2009; spool width 250 –   800, flange 500 – 1200, weight 20 – 2500 kgs; various spool types can be used on both pay-offs without modification

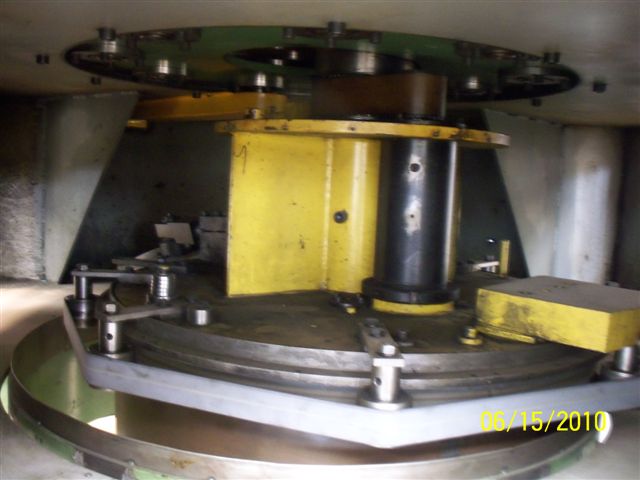

10-10-12 FRISCH barrel coiler; year 1987; production range 1,5 - 4,0 mm²; V max. 1.800 m/min.; barrel sizes: overall height 1.910 mm, filling height 1.650 mm; OD  1.370 mm, ID 800 mm; in good condition!

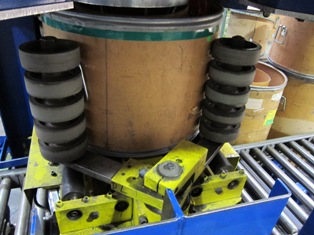

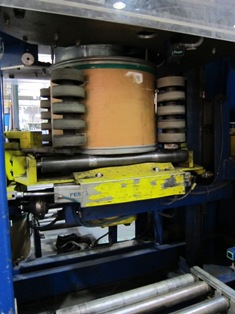

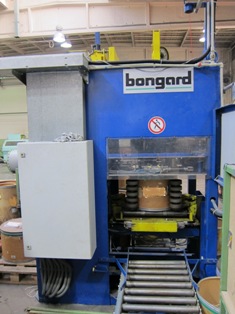

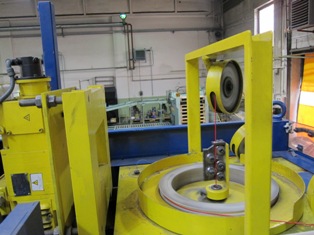

11-10-16 BONGARD static coiler TW 425-KT; year 1999; to be installed behind an extrusion line; suitable for insulated Cu conductors, Ø 1,2 – 3,5 mm; coiling speed max. 1100 m/min.; capstan Ø 415 mm; barrels: height 400 / 800 mm, outside Ø 500 / 500 mm, core Ø 315 / 315 mm; incl. accumulation device, roller conveyor, rosette layering device with tumbling head and other additional equipment; in very good condition, still operating!


11-10-18 SKALTEK coil packing line CP240; for measuring and testing cable quality, coiling and cutting cable lengths and packing cable in cartons, completely automatically; for plastic insulated single conductor cable 1,5 – 2,5 mm², stranded conductors max. 6 mm², solid conductors max. 4 mm²; coil width 40 – 100 mm; standard coil dia. 225 mm; carton sizes: 240 x 240 mm (standard size to suit Europallet 800x1200 mm), 200 x 200 mm, 265 x 265 mm; carton width 50 – 110 mm


11-10-19 HÄFNER & KRULLMANN multiway plastic bobbins (500 pcs. available); type K500; flange Ø 500 mm; barrel Ø 315 mm; useful width 180 mm; total width 250 mm; bore Ø 36 mm


Extrusion accessories
No machines available for the time being.
Various  equipment
07-12-38 KROLLMANN pointing machine; horizontal and vertical pointing rolls; suitable for FE and NF wires 4 – 26 mm; 12 horizontal and vertical calibres each

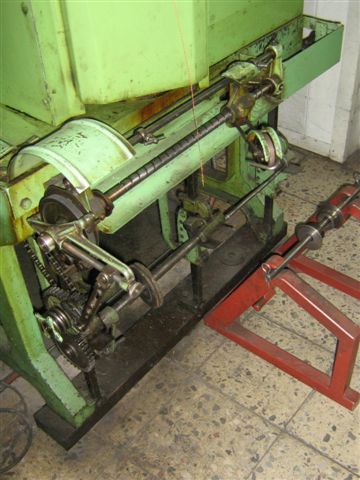

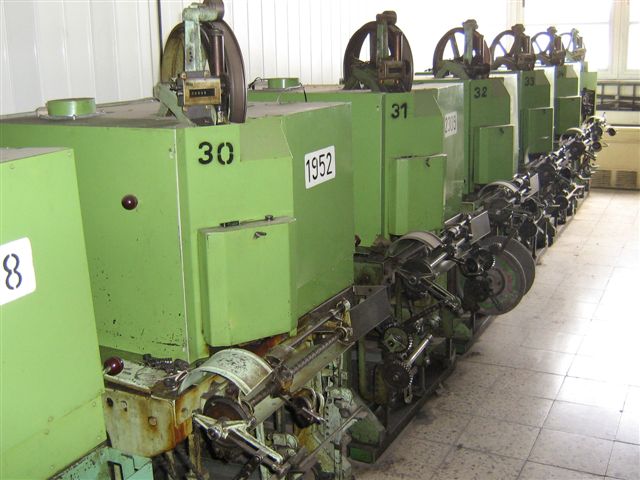

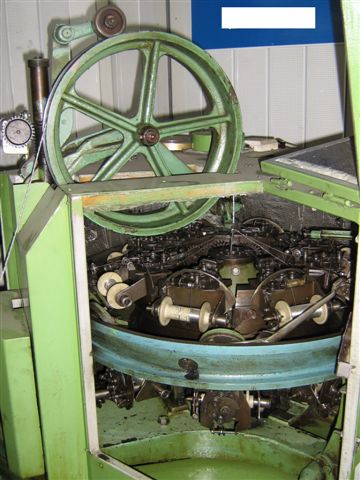

09-12-55 16 pcs. used DRATEX vertical braiding machines; for braiding of soft FE and NE screening wires; Ø max. 12 mm; type of braiding: 2 over 2; 16 bobbins (8 inside + 8 outside), bobbin size: inside Ø 65 x 82 mm, outside Ø 85 x 82 mm; good condition, still operational!

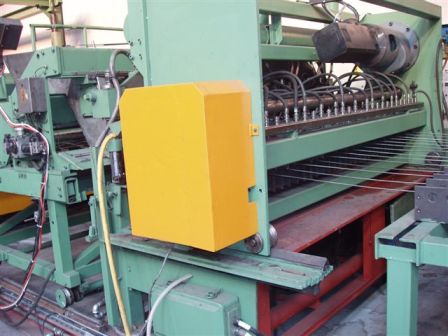

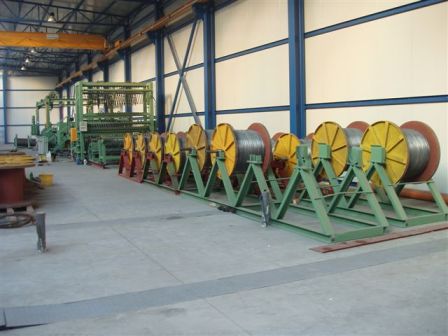

10-12-70 SCHLATTER PG 22 mesh welding line; crosswire 4 – 8 mm; longitudinal wire 4 – 8 mm; speed 80 – 90 strokes/min. (subject to wire Ø); max. mesh size (length x width) 6000 x 2250 mm; incl. PRATTO triple wire straightening and cutting machine; wire wiameter range 3 – 8 mm; tensile strength max. 800 N/mm; cutting length 500 – 6000 mm; speed 3 x 30-85 m/min. (subject to wire Ø)


10-12-71 GSW SCHWABE decoiling line, suitable for cross cutting of sheet metal coils into plates; components: pay-off, feeder straightening machine, plate shear; pay-off: capacity 500 kgs, max. coil outside Ø 1200 mm, max. strip width 1250 mm; straightening machine: sheet metal thickness 0,5 – 1,0 mm, speed 2,5 m/min.; plate shear: cutting capacity: constructional steel, 450 N/mm² up to 4 mm and stainless steel, 700 N/mm² up to 2,5 mm; in good condition, ready for operation!

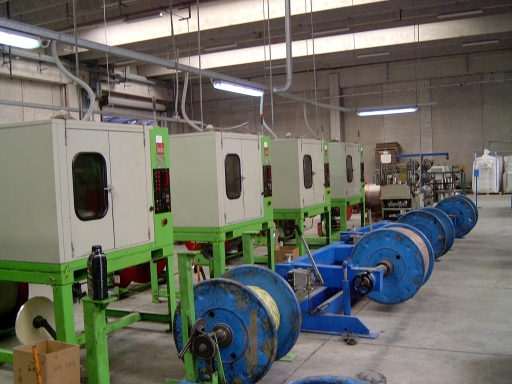

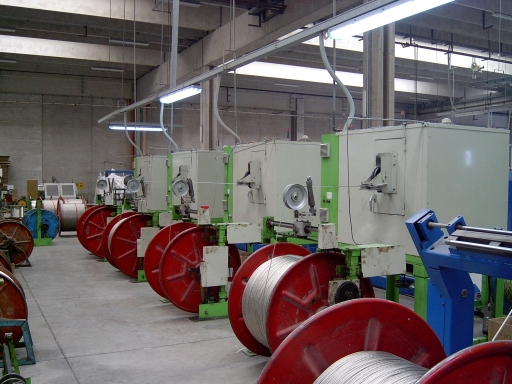

11-12-81 HACOBA wire braiding machines (5 pcs. available); type DF 16; 16 bobbins; flange Ø 80 mm; capstan Ø 400 mm; for Cu – Fe – Textile, 0,07 – 0,30 mm, 2 – 10 ends; bundle cross section min. 0,02 mm² / max. 0,3 mm²


11-12-82 NOVA gas metering unit for extrusion line; this device is used in extrusion process of insulated (triple extrusion skin-foam-skin) cables, for example for antenna downing coaxial cables; some nitrogen is inserted into the extruder of the foam layer to modify the PE dielectric constant value and to have the requested impedance value, for example 75 Ohm; input pressure range 20 – 200 bar; max. output pressure 900 bar
11-12-83 RICO forklift for cable drums; year 2010; incl. battery and charger; capacity: single drive 1815-5445 kgs, double drive 6800-11340 kgs; load center 600 mm; carriage width: 940, 1040, 1195 mm; as new, less than 25 operation hours!


11-12-85 IDEAL butt welding machine DDS 5/12; suitable for Cu 6-12 mm and Al 8-15 mm; nom. capacity 40 kVA; connected load 60 kVA; max. pressing force 4 Mp


FE Wires
FE drawing machines and FE-wire processing

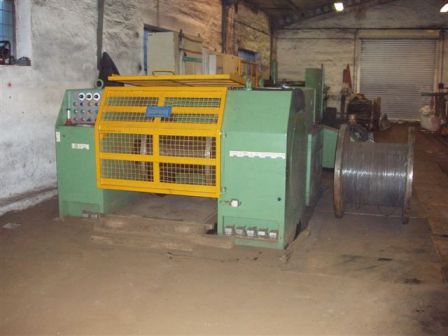

10-02-15 KOCH/ARNOLD drawing / cold rolling line for constructional steel wires, Ø 4 – 10 mm; incl. Pay-off; spooler; wire coating and other components

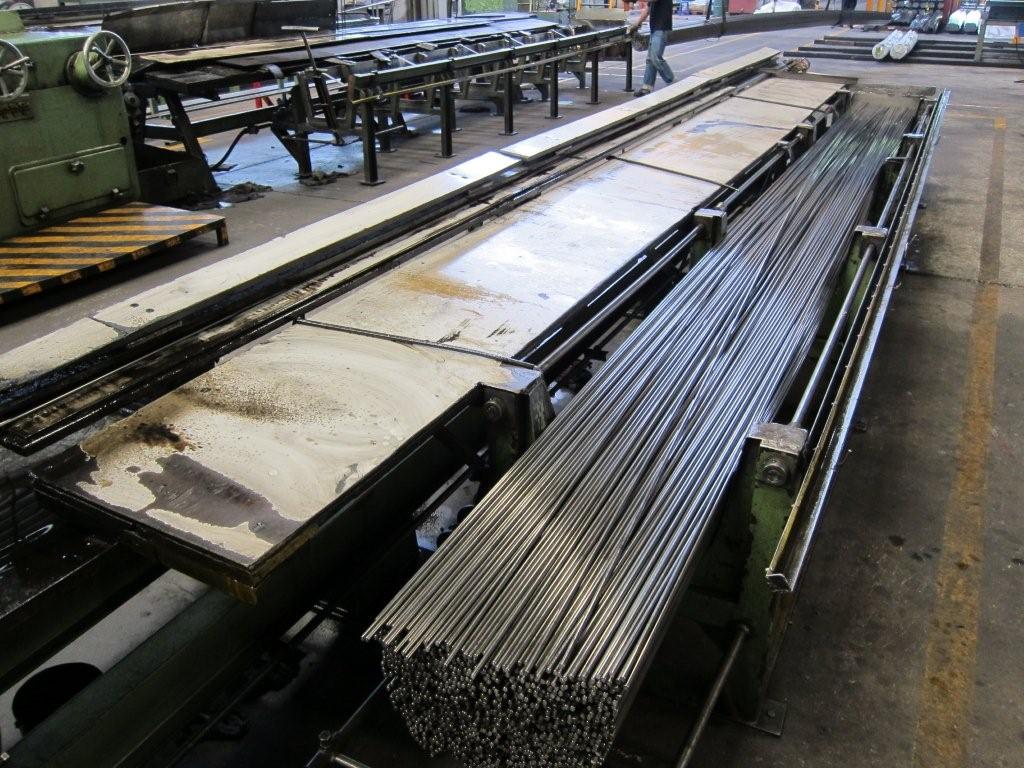

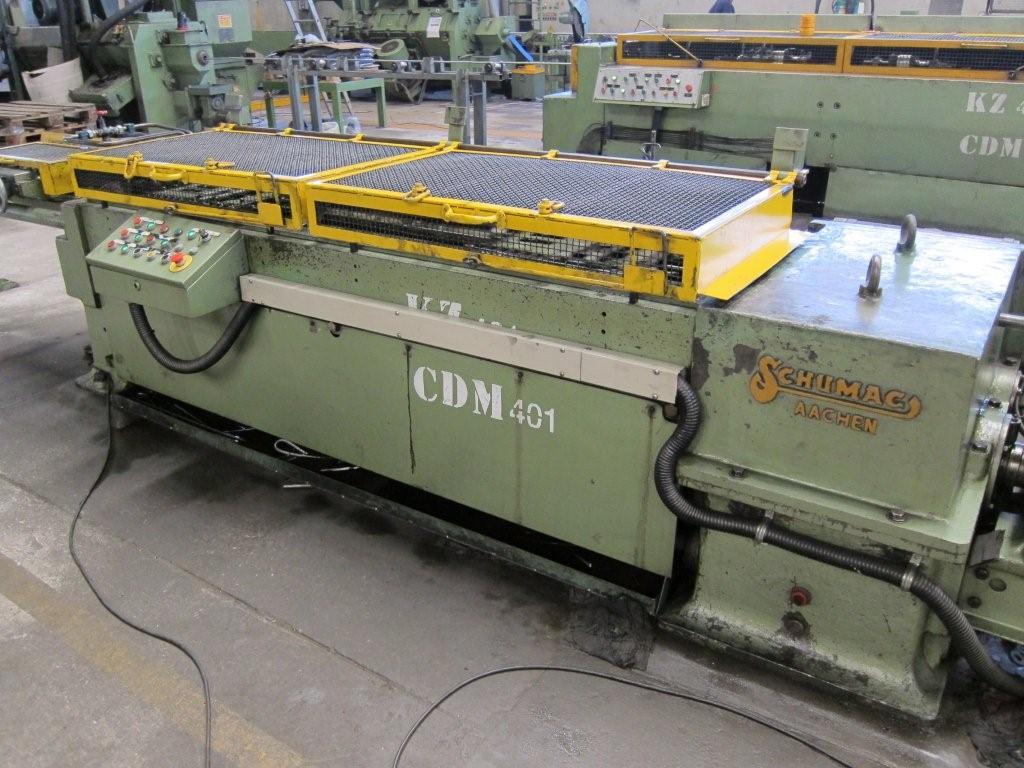

11-02-16 SCHUMAG drawing machine KZ-RP-I; fully overhauled in 2000; to be used for steel with following dimensions: square 4 -12 mm SW, hexagonal 5 -13 mm SW, round 4 -15 mm; incl. straighteners, cutting unit, length measurement, control cabinet


Most of the a.m. equipment is still installed and can be inspected in stand-still or even operation!

Detailed offers with prices and more technical info are available on request!
